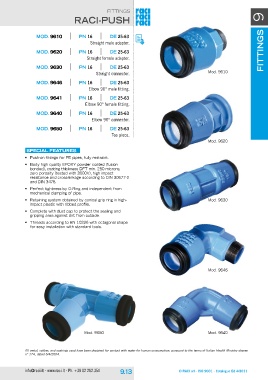

FIttINgs fittings 9

raci-pusH

MOd. 9610 pn 16 de 25-63
MOd. 9620
MOd. 9630 Straight male adaptor.
MOd. 9646
MOd. 9641 pn 16 de 25-63
MOd. 9640
MOd. 9650 Straight female adaptor.

pn 16 de 25-63

Straight connector. Mod. 9610
Mod. 9620
pn 16 de 25-63 Mod. 9630
Mod. 9646
Elbow 90° male fitting.

pn 16 de 25-63

Elbow 90° female fitting.

pn 16 de 25-63

Elbow 90° connector.

pn 16 de 25-63
Tee piece.

special features

• Push-on fittings for Pe pipes, fully restraint.

• Body high quality ePOXY powder coated (fusion
bonded), coating thickness DFt min. 250 microns,
zero porosity (tested with 3000v), high impact
resistance and cross-linkage according to DIN 30677-2
and DIN 3476.

• Perfect tightness by O-Ring and independent from
mechanical clamping of pipe.

• Retaining system obtained by conical grip ring in high-
impact plastic with ribbed profile.

• Complete with dust cap to protect the sealing and
gripping area against dirt from outside.

• threads according to eN 10226 with octagonal shape
for easy installation with standard tools.

Mod. 9650 Mod. 9640

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree
n° 174, dated 6/4/2004.
