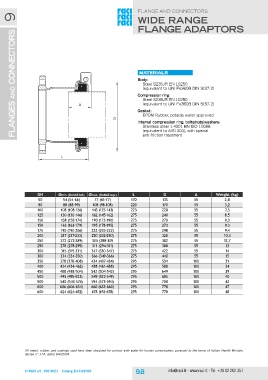

FLANGEs and CONNECTORS 9 FLANGE AND CONNECTORS
D
WIDE RANGE
FLANGE ADAPTORS

A materials
L
Body:
Steel S235JR EN 10250
(equivalent to UNI Fe360B DIN St37.2)

Compression ring:
Steel S235JR EN 10250
(equivalent to UNI Fe360B DIN St37.2)

Gasket:
EPDM Rubber, potable water approved

Internal compression ring, bolts/nuts/washers:
Stainless steel 1.4301 EN ISO 10088
(equivalent to AISI 304), with special
anti-friction treatment

DN Ømin. (RANGE inf.) Ømax. (RANGE sup.) L D A Weight (kg)

50 54 (54-66) 77 (65-77) 170 133 55 2,8

80 88 (88-99) 108 (98-108) 220 170 55 3,2

100 108 (108-126) 143 (125-143) 223 220 55 7,5

125 130 (130-146) 162 (145-162) 275 240 55 8,5

150 158 (158-174) 190 (173-190) 275 270 55 9,3

150 163 (163-179) 195 (178-195) 275 273 55 9,3

175 190 (190-206) 222 (205-222) 275 298 55 9,4

200 217 (217-233) 250 (232-250) 275 328 55 10,3

250 272 (272-289) 305 (288-305 275 382 55 12,7

250 278 (278-295) 311 (294-311) 275 388 55 13

300 315 (315-331) 347 (330-347) 275 422 55 14

300 334 (334-350) 366 (349-366) 275 440 55 15

350 378 (378-408) 434 (407-434) 295 534 100 31

400 434 (434-462) 488 (461-488) 295 588 100 34

450 488 (488-504) 542 (504-542) 295 649 100 39

500 495 (495-523) 549 (522-549) 295 685 100 40

500 540 (540-574) 594 (573-594) 295 700 100 42

600 606 (606-634) 660 (633-660) 295 778 100 47

600 624 (624-652) 678 (651-678) 295 778 100 48

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
