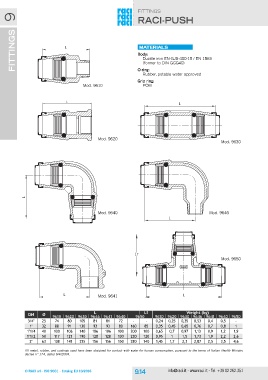

FITTINGS 9 L fittings

Mod. 9610 RACI-PUSH

L materials
Body:

Ductile iron EN-GJS-400-15 / EN 1563
(former to DIN GGG40)
O-ring:
Rubber, potable water approved
Grip ring:
POM

L

Mod. 9620 Mod. 9630

L

Mod. 9640 Mod. 9646
L

L1
Mod. 9650

L Mod. 9641 L

DN Ø L L1 Weight (kg)
9610 9620 9630 9646 9641 9640 9650 9610 9620 9630 9646 9641 9640 9650
3/4" 25 74 80 105 81 81 72 - - 0,24 0,25 0,35 0,53 0,4 0,5 -

1" 32 88 91 130 93 93 80 160 85 0,35 0,45 0,65 0,76 0,7 0,8 1

1"1/4 40 100 106 140 106 106 100 200 100 0,65 0,7 0,97 1,13 0,9 1,2 1,9

1"1/2 50 117 121 190 128 128 130 230 120 0,95 1 1,5 1,73 1,9 2,2 2,6

2" 63 138 141 215 156 156 150 280 140 1,45 1,7 2,3 2,87 2,5 3,5 4,6

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
