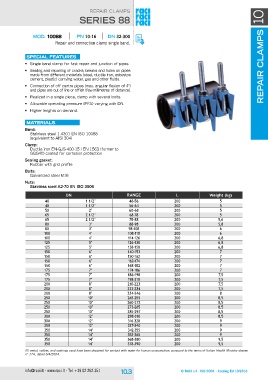

REPAIR CLAMPS REPAIR CLAMPS 10

series 88

MOD. 10088 PN 10-16 DN 32-300

Repair and connection clamp single band.

special features

• Single band clamp for fast repair and junction of pipes.

• Sealing and repairing of cracks, breaks and holes on pipes
made from different materials (steel, ductile iron, asbestos
cement, plastic) carrying water, gas and other fluids.

• Connection of off centre pipes (max. angular flexion of 4°)
and pipes are out of line or offish (few millimetres of distance).

• Realized in a single piece, clamp with several bolts.

• Allowable operating pressure (PFA) varying with DN.

• Higher lenghts on demand.

materials

Band:
Stainless steel 1.4301 EN ISO 10088
(equivalent to AISI 304)

Clamp:
Ductile iron EN-GJS-400-15 / EN 1563 (former to
GGG40) coated for corrosion protection

Sealing gasket:
Rubber with grid profile

Bolts:
Galvanized steel M16

Nuts:
Stainless steel A2-70 EN ISO 3506

DN RANGE L Weight (kg)
40 1 1/2" 200 5
40 1 1/2" 48-56 200 5
50 2" 56-64 200 5
65 2 1/2" 60-68 200 5
65 2 1/2" 68-78 200 5,6
80 3" 78-88 200 5,8
80 3" 88-98 200 6
100 4" 98-108 200 6
100 4" 108-118 200 6,8
125 5" 114-126 200 6,8
125 5" 126-138 200 6,8
150 6" 138-150 200 7
150 6" 140-153 200 7
150 6" 150-162 200 7
150 6" 162-174 200 7
175 7" 168-182 200 7
175 7" 174-186 200 7,5
175 7" 186-198 200 7,5
200 8" 198-210 200 7,5
200 8" 210-223 200 7,5
200 8" 222-234 200 8
250 10" 234-246 200 8,5
250 10" 243-255 200 8,5
250 10" 260-272 200 8,5
250 10" 273-285 200 8,5
300 12" 285-297 200 8,5
300 12" 298-310 200 9
300 12" 316-328 200 9
350 14" 327-340 200 9
350 14" 342-355 200 9
350 14" 353-365 200 9,5
350 14" 368-380 200 9,5
378-390

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree
n° 174, dated 6/4/2004.
