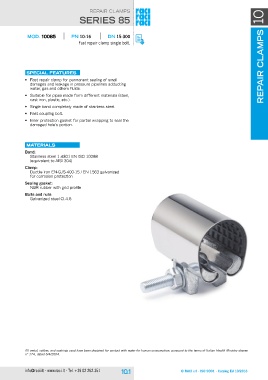

REPAIR CLAMPS REPAIR CLAMPS 10

series 85

MOD. 10085 PN 10-16 DN 15-300

Fast repair clamp single bolt.

special features

• Fast repair clamp for permanent sealing of small
damages and leakage in pressure pipelines adducting
water, gas and others fluids.

• Suitable for pipes made form different materials (steel,
cast iron, plastic, etc.).

• Single band completely made of stainless steel.

• Fast coupling bolt.

• Inner protection gasket for partial wrapping to seal the
damaged hole’s portion.

Materials

Band:
Stainless steel 1.4301 EN ISO 10088
(equivalent to AISI 304)

Clamp:
Ductile iron EN-GJS-400-15 / EN 1563 galvanized
for corrosion protection

Sealing gasket:
NBR rubber with grid profile

Bolts and nuts:
Galvanized steel Cl.4.6

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree
n° 174, dated 6/4/2004.
