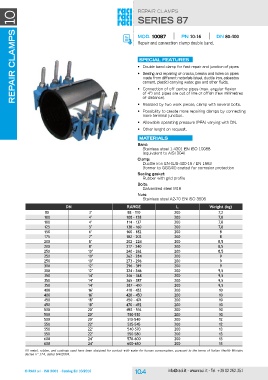

REPAIR CLAMPS 10 REPAIR CLAMPS

series 87

MOD. 10087 PN 10-16 DN 80-400

Repair and connection clamp double band.

special features

• Double band clamp for fast repair and junction of pipes.

• Sealing and repairing of cracks, breaks and holes on pipes
made from different materials (steel, ductile iron, asbestos
cement, plastic) carrying water, gas and other fluids.

• Connection of off centre pipes (max. angular flexion
of 4°) and pipes are out of line or offish (few millimetres
of distance).

• Realized by two work pieces, clamp with several bolts.

• Possibility to create more repairing clamps by connecting
more terminal junction.

• Allowable operating pressure (PFA) varying with DN.

• Other lenght on request.

materials

Band:
Stainless steel 1.4301 EN ISO 10088
(equivalent to AISI 304)

Clamp:
Ductile iron EN-GJS-400-15 / EN 1563
(former to GGG40) coated for corrosion protection

Sealing gasket:
Rubber with grid profile

Bolts:
Galvanized steel M16

Nuts:
Stainless steel A2-70 EN ISO 3506

DN RANGE L Weight (kg)

80 3" 88 - 110 200 7,2
100 4" 108 - 128 200 7,8
100 4" 114 - 137 200 7,8
125 5" 138 - 160 200 7,8
150 6" 160 - 182 200 8
175 7" 182 - 202 200 8
200 8" 202 - 224 200 8,5
200 8" 217 - 240 200 8,5
250 10" 240 - 262 200 8,5
250 10" 262 - 284 200 9
250 10" 273 - 296 200 9
300 12" 296 - 319 200 9
300 12" 324 - 346 200 9,5
350 14" 346 - 368 200 9,5
350 14" 365 - 387 200 9,5
350 14" 387 - 410 200 9,5
400 16" 410 - 432 200 10
400 16" 428 - 450 200 10
450 18" 450 - 474 200 10
450 18" 470 - 492 200 10
500 20" 492 - 516 200 10
500 20" 510-530 200 10
500 20" 510-540 200 12
550 22" 525-545 200 12
550 22" 540-570 200 13
550 22" 550-580 200 13
600 24" 570-600 200 13
600 24" 600-630 200 13

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
