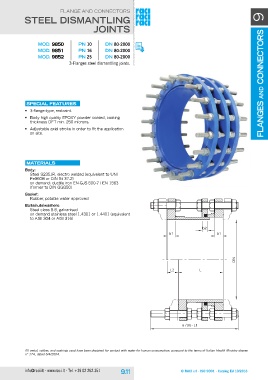

FLANGE AND CONNECTORS FLANGEs and CONNECTORS 9
STEEL DISMANTLING
JOINTS
MOD. 9850 PN 10 DN 80-2000
MOD. 9851
MOD. 9852 PN 16 DN 80-2000
PN 25 DN 80-2000
3-Flanges steel dismantling joints.
special features
• 3-flange-type, restraint.
• Body high quality EPOXY powder coated, coating
thickness DFT min. 250 microns.
• Adjustable axial stroke in order to fit the application
on site.
Materials
Body:
Steel S235JR, electro welded (equivalent to UNI
Fe360B or DIN St 37.2)
on demand: ductile iron EN-GJS-500-7 / EN 1563
(former to DIN GGG50)
Gasket:
Rubber, potable water approved
Bolts/nuts/washers:
Steel class 8.8, galvanised
on demand stainless steel 1.4301 or 1.4401 (equivalent
to AISI 304 or AISI 316)
b2 DN
b1 b1
L2 L
n / M - L1
All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree
n° 174, dated 6/4/2004.
