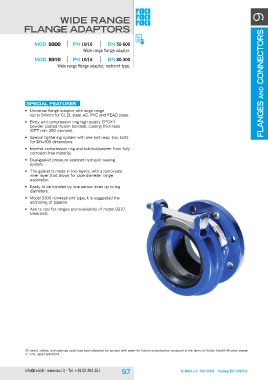

FLANGE AND CONNECTORS FLANGEs and CONNECTORS 9

WIDE RANGE
FLANGE ADAPTORS

MOD. 9300 PN 10/16 DN 50-600

Wide range flange adaptor.

MOD. 9310 PN 10/16 DN 80-300

Wide range flange adaptor, restraint type.

special features

• Universal flange adaptor with large range
(up to 54mm) for CI, DI, steel, AC, PVC and PEAD pipes.

• Body and compression ring high quality EPOXY
powder coated (fusion bonded), coating thickness
(DFT min. 250 microns).

• Special tightening system with one bolt resp. two bolts
for DN≥300 dimensions.

• Internal compression ring and bolt/nut/washer from fully
corrosion-free material.

• Dual-gasket pressure assisted hydraulic sealing
system.

• The gasket is made in two layers, with a removable
inner layer that allows for pipe diameter range
expansion.

• Easily to be handled by one person even up to big
diameters.

• Model 9300 non-restraint type, it is suggested the
anchoring of pipeline.

• Ask to raci for ranges and availability of model 9310
(restraint).

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree
n° 174, dated 6/4/2004.
