FLANGEs and CONNECTORS 9L FLANGE AND CONNECTORS
DA

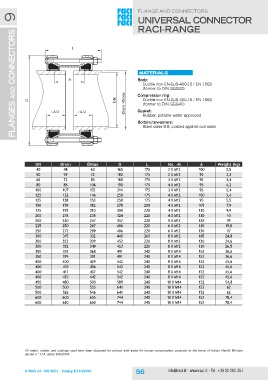

DN UNIVERSAL CONNECTOR
Ømin -Ømax~A/2~A/2RACI-RANGE

Materials
Body:

Ductile iron EN-GJS-400-15 / EN 1563
(former to DIN GGG40)
Compression ring:
Ductile iron EN-GJS-400-15 / EN 1563
(former to DIN GGG40)
Gasket:
Rubber, potable water approved
Bolts/nuts/washers:
Steel class 8.8, coated against corrosion

DN Ømin Ømax D L No. -M A Weight (kg)

40 48 60 165 175 2 X M12 100 2,5

50 59 72 180 175 2 X M12 95 3,3

65 72 85 180 175 3 X M12 95 3,4

80 86 106 190 175 4 X M12 95 4,2

100 107 132 214 175 3 X M12 95 5,4

125 132 146 250 175 4 X M12 100 5,4

125 138 153 250 175 4 X M12 95 5,5

150 159 182 278 200 4 X M12 105 7,9

175 192 210 300 220 4 X M12 130 9,9

200 218 235 324 220 4 X M12 130 10

200 230 247 357 220 5 X M12 130 19

225 250 267 406 220 6 X M12 130 19,8

250 272 289 406 220 6 X M12 130 17

300 315 332 440 260 8 X M12 165 24,8

300 322 339 452 220 8 X M12 130 24,6

300 332 349 463 220 8 X M12 130 26,5

350 351 368 491 240 8 X M14 152 36,6

350 374 391 491 240 8 X M14 152 36,6

400 400 429 542 240 8 X M14 152 45,6

400 410 436 542 240 8 X M14 152 45,6

400 417 437 542 240 8 X M14 152 45,6

400 425 442 542 240 8 X M14 152 45,6

450 480 500 589 240 10 X M14 152 54,8

500 500 535 641 240 10 X M14 152 62

500 526 546 641 240 10 X M14 152 62

600 600 635 744 240 10 X M14 152 78,4

600 630 650 744 240 10 X M14 152 78,4

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
