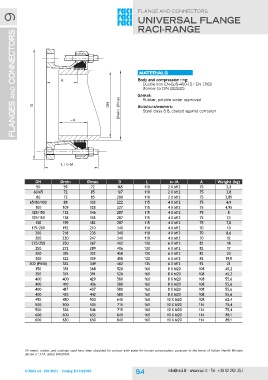

Page 82 - RACI
P. 82
FLANGEs and CONNECTORS 9A FLANGE AND CONNECTORS
D~A
DN UNIVERSAL FLANGE
Ømin -Ømax RACI-RANGE
materials
Body and compression ring:
Ductile iron EN-GJS-400-15 / EN 1563
(former to DIN GGG40)
Gasket:
Rubber, potable water approved
Bolts/nuts/washers:
Steel class 8.8, coated against corrosion
L / n-M
DN Ømin Ømax D L n- M A Weight (kg)
50 59 165
60/65 72 72 187 110 2 X M12 75 3,3
80 72 85 200
65/80/100 88 85 222 110 2 X M12 75 3,8
100 109 103 227
125/150 132 128 287 110 2 X M12 75 3,85
125/150 138 146 287
150 159 153 287 115 4 X M12 75 4,9
175/200 192 182 340
200 218 210 340 115 4 X M12 75 4,95
200 230 235 340
225/250 250 247 402 115 4 X M12 75 8
250 272 267 406
300 315 289 458 115 4 X M12 75 7,1
300 322 332 458
300 (PN16) 332 339 462 115 4 X M12 75 7,8
350 351 349 520
350 374 368 520 110 4 X M12 70 10
400 400 391 580
400 410 429 580 110 4 X M12 70 8,6
400 417 436 580
400 425 437 580 110 4 X M12 70 12
450 480 442 640
500 500 500 715 120 6 X M12 82 18
500 526 535 715
600 600 546 840 120 6 X M12 82 17
600 630 635 840
650 120 6 X M12 82 20
120 6 X M12 82 19,5
135 6 X M12 92 21
160 8 X M20 108 45,2
160 8 X M20 108 45,2
160 8 X M20 108 55,6
160 8 X M20 108 55,6
160 8 X M20 108 55,6
160 8 X M20 108 55,6
160 10 X M20 108 62,4
160 10 X M20 114 75,4
160 10 X M20 114 75,4
160 10 X M20 114 89,1
160 10 X M20 114 89,1
All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
