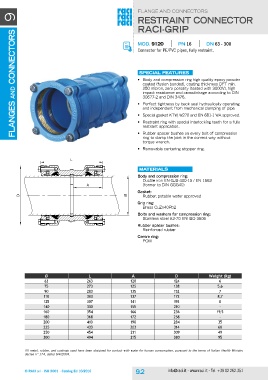

flanges and cOnnectOrs 9 FlaNge aND CONNeCtORs

restraint cOnnectOr
raci-grip

MOd. 9120 pn 16 dn 63 - 300

Connector for PE/PVC pipes, fully restraint.

L special features
A
• Body and compression ring high quality epoxy powder
D Ø coated (fusion bonded), coating thickness DFt min.
250 micron, zero porosity (tested with 3000v), high
impact resistance and cross-linkage according to DIN
30677-2 and DIN 3476.

• Perfect tightness by back seal hydraulically operating
and independent from mechanical clamping of pipe.

• special gasket KtW, W270 and eN 681-1 Wa approved.

• Restraint ring with special interlocking teeth for a fully
restraint application.

• Rubber spacer bushes on every bolt of compression
ring to clamp the joint in the correct way without
torque wrench.

• Removable centering stopper ring.

Materials

Body and compression ring:
Ductile iron eN-gJs-400-15 / eN 1563
(former to DIN ggg40)

gasket:
Rubber, potable water approved

grip ring:
Brass CuZn40Pb2

Bolts and washers for compression ring:
stainless steel a2-70 eN IsO 3506

rubber spacer bushes:
Reinforced rubber

centre ring:
POM

Ø L A D Weight (kg)

63 263 120 124 6

75 273 125 138 5,6

90 283 135 152 7

110 303 137 172 8,7

125 307 141 193 8

140 330 155 210 -

160 354 166 236 19,5

180 368 172 258 -

200 410 190 284 35

225 433 203 314 60

250 454 211 309 49

300 494 215 380 95

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
