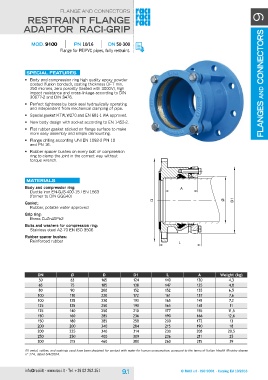

FlaNge aND CONNeCtORs flanges and cOnnectOrs 9
restraint flange
adaptOr raci-grip
MOd. 9100 pn 10/16 dn 50-300
Flange for PE/PVC pipes, fully restraint.
special features D A Ø
L D1
• Body and compression ring high quality epoxy powder
coated (fusion bonded), coating thickness DFt min.
250 microns, zero porosity (tested with 3000v), high
impact resistance and cross-linkage according to DIN
30677-2 and DIN 3476.
• Perfect tightness by back seal hydraulically operating
and independent from mechanical clamping of pipe.
• special gasket KtW, W270 and eN 681-1 Wa approved.
• New body design with socket according to eN 1452-2.
• Flat rubber gasket sticked on flange surface to make
more easy assembly and simple dismounting.
• Flange drilling according UNI eN 1092-2 PN 10
and PN 16.
• Rubber spacer bushes on every bolt of compression
ring to clamp the joint in the correct way without
torque wrench.
Materials
Body and compression ring:
Ductile iron eN-gJs-400-15 / eN 1563
(former to DIN ggg40)
gasket:
Rubber, potable water approved
grip ring:
Brass CuZn40Pb2
Bolts and washers for compression ring:
stainless steel a2-70 eN IsO 3506
rubber spacer bushes:
Reinforced rubber
DN Ø D D1 L A Weight (kg)
50 63 165 124 140 120 4,3
65 75 185 138 147 125 4,8
80 90 200 152 152 135 6,5
100 110 220 172 161 137 7,6
100 125 220 193 165 141 7,2
125 125 250 193 165 141 11
125 140 250 210 177 155 11,5
150 160 285 236 190 166 12,6
150 180 285 258 200 172 13
200 200 340 284 215 190 18
200 225 340 314 230 203 20,5
250 250 400 309 236 211 25
300 315 460 380 260 215 39
All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree
n° 174, dated 6/4/2004.
