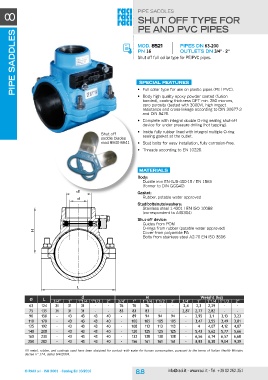

pipe saddles 8 PIPe saDDles
sHut Off type fOr
pe and pvc pipes
MOd. 8521 pipes dn 63-200
pn 16 Outlets dn 3/4“ - 2“
Shut off full collar type for PE/PVC pipes.
shut off special features
saddle blades
mod 8940-8941 • Full collar type for use on plastic pipes (Pe / PvC).
• Body high quality epoxy powder coated (fusion
bonded), coating thickness DFt min. 250 microns,
zero porosity (tested with 3000v), high impact
resistance and cross-linkage according to DIN 30677-2
and DIN 3476.
• Complete with integral double O-ring sealing shut-off
device for under pressure drilling (hot tapping).
• Inside fully rubber lined with integral multiple O-ring
sealing gasket at the outlet.
• stud bolts for easy installation, fully corrosion-free.
• threads according to eN 10226.
H Materials
Body:
Ductile iron eN-gJs-400-15 / eN 1563
(former to DIN ggg40)
d1 gasket:
d Rubber, potable water approved
stud/bolts/nuts/washers:
stainless steel 1.4301 / eN IsO 10088
(correspondent to aIsI304)
shut-off device:
guides from POM
O-rings from rubber (potable water approved)
Cover from polyamide Pa
Bolts from stainless steel a2-70 eN IsO 3506
L
Ø L 3/4" d 3/4" H 3/4" Weight (kg)
1" 1"1/4 1"1/2 2" 1" 1"1/4 1"1/2 2" 1" 1"1/4 1"1/2 2"
63 124 31 31 31 - - 76 76 76 - - 2,4 2,3 2,29 - -
75 135 31 31 31 - - 83 83 83 - - 2,87 2,77 2,82 - -
90 150 - 43 43 43 40 - 89 94 94 94 - 2,95 3,1 3,13 3,23
110 170 - 43 43 43 40 - 100 105 105 105 - 3,47 3,55 3,49 3,81
125 192 - 43 43 43 40 - 108 113 113 113 - 4 4,07 4,12 4,07
140 208 - 43 43 43 40 - 120 125 125 125 - 5,43 5,62 5,77 5,66
160 230 - 43 43 43 40 - 133 138 138 138 - 6,56 6,74 6,57 6,68
200 282 - 43 43 43 40 - 156 161 161 161 - 8,93 8,38 9,04 9,39
All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
