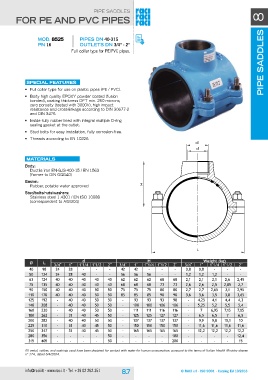

PIPe saDDles H
fOr pe and pvc pipes pipe saddles 8
MOd. 8525 pipes dn 40-315
pn 16 Outlets dn 3/4“ - 2“
Full collar type for PE/PVC pipes.
special features d1
d
• Full collar type for use on plastic pipes (Pe / PvC).
• Body high quality ePOXY powder coated (fusion
bonded), coating thickness DFt min. 250 microns,
zero porosity (tested with 3000v), high impact
resistance and cross-linkage according to DIN 30677-2
and DIN 3476.
• Inside fully rubber lined with integral multiple O-ring
sealing gasket at the outlet.
• stud bolts for easy installation, fully corrosion-free.
• threads according to eN 10226.
Materials
Body:
Ductile iron eN-gJs-400-15 / eN 1563
(former to DIN ggg40)
gasket:
Rubber, potable water approved
stud/bolts/nuts/washers:
stainless steel 1.4301 / eN IsO 10088
(correspondent to aIsI304)
L
Ø L 3/4" d 3/4" H 3/4" Weight (kg)
1" 1"1/4 1"1/2 2" 1" 1"1/4 1"1/2 2" 1" 1"1/4 1"1/2 2"
40 98 24 28 - - - 42 42 - - - 0,8 0,8 - - -
50 124 24 28 40 - - 56 56 56 - - 1,2 1,2 1,2 - -
63 124 40 40 40 40 40 62 62 62 68 68 2,1 2,1 2,1 2,6 2,45
75 135 40 40 40 40 40 68 68 68 73 73 2,6 2,6 2,5 2,85 2,7
90 150 40 40 40 50 50 75 75 75 80 80 2,7 2,7 2,65 3,1 2,95
110 170 40 40 40 50 50 85 85 85 90 90 3,6 3,6 3,5 3,8 3,65
125 192 - 40 40 50 50 - 93 93 93 98 - 4,25 4,1 4,4 4,3
140 208 - 40 40 50 50 - 100 100 106 106 - 5,25 5,2 5,5 5,4
160 230 - 40 40 50 50 - 111 111 116 116 - 7 6,95 7,15 7,05
180 262 - 31 40 45 50 - 125 125 127 127 - 6,5 6,5 7 6,5
200 282 - 40 40 50 50 - 137 137 137 137 - 9,9 9,8 10,1 10
225 310 - 31 40 45 50 - 150 150 150 150 - 11,6 11,6 11,6 11,6
250 347 - 31 40 45 50 - 165 165 165 165 - 12,2 12,2 12,2 12,2
280 356 - - - - 50 - - - - 180 - - - - 12,4
315 405 - - - - 50 - - - - 200 - - - - 15
All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree
n° 174, dated 6/4/2004.
