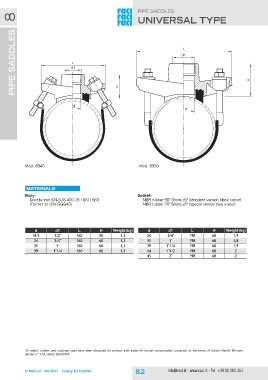

P. 72
PIPE SADDLES
universal type
L
d1
L
d1
dd
PIPE SADDLES 8
H
H
Mod. 8340 Mod. 8350
Materials Materiali
Body: Gasket:
Ductile iron EN-GJS-400-15 / EN 1563 NBR rubber 90° Shore ±5° (standard version black colour)
(former to DIN GGG40) NBR rubber 70° Shore ±5° (special version blue colour)
d d1 L H Weight(kg) d d1 L H Weight(kg)
50 1,3 24 3/4" 68 1,9
18,5 1/2" 160 31 1" 198 68 1,8
60 1,3 39 1"1/4 68 1,9
24 3/4" 160 60 1,3 44 1"1/2 198 68 2
60 1,3 45 2" 198 68 2
31 1" 160 198
198
39 1"1/4 160
All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
