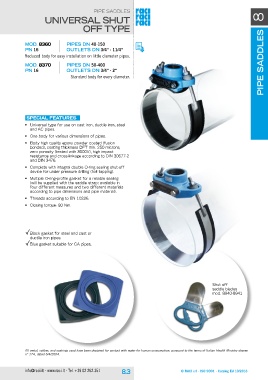

PIPe saDDles pipe saddles 8

universal sHut
Off type

MOd. 8360 pipes dn 40-150
pn 16 Outlets dn 3/4“ - 11/4“

Reduced body for easy installation on little diameter pipes.

MOd. 8370 pipes dn 50-400
pn 16 Outlets dn 3/4“ - 2“

Standard body for every diameter.

special features
• Universal type for use on cast iron, ductile iron, steel

and aC pipes.
• One body for various dimensions of pipes.
• Body high quality epoxy powder coated (fusion

bonded), coating thickness DFt min. 250 microns,
zero porosity (tested with 3000v), high impact
resistance and cross-linkage according to DIN 30677-2
and DIN 3476.
• Complete with integral double O-ring sealing shut-off
device for under pressure drilling (hot tapping).
• Multiple O-ring-profile gasket for a reliable sealing
(will be supplied with the saddle strap: available in
four different measures and two different materials
according to pipe dimensions and pipe material).
• threads according to eN 10226.
• Closing torque: 80 Nm.

Black gasket for steel and cast or
ductile iron pipes.
Blue gasket suitable for Ca pipes.

shut off
saddle blades
mod. 8940-8941

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree
n° 174, dated 6/4/2004.
