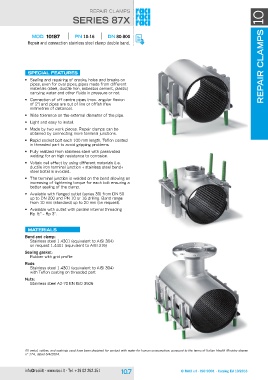

REPAIR CLAMPS REPAIR CLAMPS 10

series 87x

MOD. 10187 PN 10-16 DN 80-800

Repair and connection stainless steel clamp double band.

special features

• Sealing and repairing of cracks, holes and breaks on
pipes, even for oval pipes, pipes made from different
materials (steel, ductile iron, asbestos cement, plastic)
carrying water and other fluids in pressure or not.

• Connection of off centre pipes (max. angular flexion
of 2°) and pipes are out of line or offish (few
millimetres of distance).

• Wide tolerance on the external diameter of the pipe.

• Light and easy to install.

• Made by two work pieces. Repair clamps can be
obtained by connecting more terminal junctions.

• Rapid socket bolt each 100 mm length, Teflon coated
in threaded part to avoid gripping problems.

• Fully realized from stainless steel with passivated
welding for an high resistance to corrosion.

• Voltaic cell effect by using different materials (i.e.
ductile iron terminal junction + stainless steel band+
steel bolts) is avoided.

• The terminal junction is welded on the band allowing an
increasing of tightening torque for each bolt ensuring a
better sealing of the clamp.

• Available with flanged outlet (series 30) from DN 50
up to DN 200 and PN 10 or 16 drilling. Band range
from 10 mm (standard) up to 20 mm (on request).

• Available with outlet with parallel internal threading
Rp ½” – Rp 3”.

materials

Band and clamp:
Stainless steel 1.4301 (equivalent to AISI 304)
on request 1.4401 (equivalent to AISI 316)

Sealing gasket:
Rubber with grid profile

Rods:
Stainless steel 1.4301 (equivalent to AISI 304)
with Teflon coating on threaded part

Nuts:
Stainless steel A2-70 EN ISO 3506

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree
n° 174, dated 6/4/2004.
