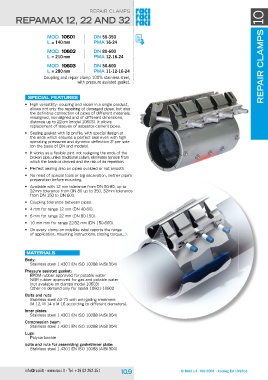

RePaIR ClaMPs repair claMps 10

repaMaX 12, 22 and 32

MOd. 10601 dn 50-350
l = 140 mm pMa 16-24

MOd. 10602 dn 80-600
l = 210 mm pMa 12-16-24

MOd. 10603 dn 50-600
l = 280 mm pMa 11-12-16-24

Coupling and repair clamp 100% stainless steel,
with pressure assisted gasket.

special features

• High versatility: coupling and repair in a single product,
allows not only the repairing of damaged pipes, but also
the definitive connection of pipes of different materials,
misaligned, non-aligned and of different dimensions,
distance up to 22 cm (model 10603). It allows
replacement of sleeves of asbestos-cement pipes.

• sealing gasket with lip profile, with special design at
the ends which ensures a perfect seal even with high
operating pressures and dynamic deflection 3° per side
(on the basis of DN and models).

• It works as a flexible joint: not realigning the ends of the
broken pipe, unlike traditional collars, eliminates tension from
which the break is derived and the risk of its repetition.

• Perfect sealing also on pipes ovalized or not smooth.

• No need of special tools or big escavation, neither pipe’s
preparation before mounting.

• available with 12 mm tolerance from DN 50-80, up to
22 mm tolerance from DN 80 up to 350, 32 mm tolerance
from DN 150 to DN 600.

• Coupling tolerance between pipes:

• 4 mm for range 12 mm (DN 40-80).

• 6 mm for range 22 mm (DN 80-150).

• 10 mm mm for range 22/32 mm (DN 150-600).

• On every clamp an indelible label reports the range
of application, mounting instructions, closing torque…).

Materials

Body:
stainless steel 1.4301 eN IsO 10088 (aIsI 304)

pressure assisted gasket:
ePDM rubber approved for potable water
NBR rubber approved for gas and potable water
(not available on clamps model 10603)
Other on demand only for model 10601-10602

Bolts and nuts:
stainless steel a2-70 with anti-galling treatment
(M 12, M 14 o M 16 according to different diameters).

inner plates:
stainless steel 1.4301 eN IsO 10088 (aIsI 304)

compression beam:
stainless steel 1.4301 eN IsO 10088 (aIsI 304)

lugs:
Polycarbonate

bolts and nuts for assembling gasket/inner plate:
stainless steel 1.4301 eN IsO 10088 (aIsI 304)
