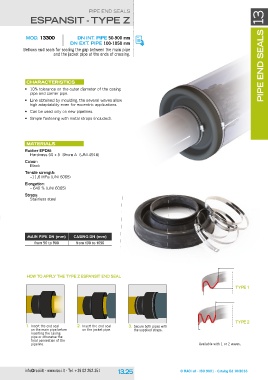

P. 143
PIPe eND seals pipe end seals 13
espansit - type z
MOd. 13300 dn int. pipe 50-900 mm
dn eXt. pipe 100-1050 mm
Bellows end seals for sealing the gap between the main pipe
and the jacket pipe at the ends of crossing.
cHaracteristics
• 10% tolerance on the outer diameter of the casing
pipe and carrier pipe.
• line obtained by moulding, the several waves allow
high adaptability even for eccentric applications.
• Can be used only on new pipelines.
• simple fastening with metal straps (included).
Materials
rubber epdM:
Hardness 50 ± 5 shore a (UNI 4916)
colour:
Black
tensile strength:
~11,6 MPa (UNI 6065)
elongation:
~ 640 % (UNI 6065)
straps:
stainless steel
MAIN PIPE DN (mm) CASING DN (mm)
from 50 to 900 from 100 to 1050
HOW tO apply tHe type z espansit end seal
type 1
1. Insert the end seal 2. Insert the end seal 3. Secure both pipes with type 2
on the main pipe before on the jacket pipe. the supplied straps. Available with 1 or 2 waves.
inserting the casing
pipe or otherwise the
final connection of the
pipeline.
