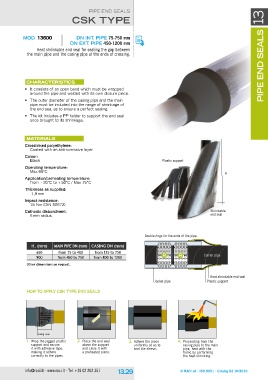

PIPe eND seals pipe end seals 13

csK type

MOd. 13600 dn int. pipe 75-750 mm
dn eXt. pipe 450-1200 mm

Heat shrinkable end seal for sealing the gap between
the main pipe and the casing pipe at the ends of crossing.

cHaracteristics Plastic support

• It consists of an open band which must be wrapped H
around the pipe and welded with its own closure piece.
Shrinkable
• the outer diameter of the casing pipe and the main end seal
pipe must be included into the range of shrinkage of
the end sea, as to ensure a perfect sealing.

• the kit includes a PP holder to support the end seal
once brought to its shrinkage.

Materials

crosslinked polyethylene:
Coated with an anti-corrosive layer

colour:
Black

Operating temperature:
Max 65°C

application/preheating temperature:
from - 20°C to + 50°C / Max 75°C

thickness as supplied:
1,9 mm

impact resistance:
15 Nm (DIN 30672)

cathodic disbondment:
6 mm radius

H. (mm) MAIN PIPE DN (mm) CASING DN (mm) Double rings for the ends of the pipe
Carrier pipe
650 from 75 to 400 from 125 to 750
900 from 450 to 750 from 800 to 1200

Other dimensions on request.

Jacket pipe Heat shrinkable end seal
Plastic support

HOW tO apply csK type end seals

Fixing zone 2. Place the end seal 3. Adhere the piece 4. Proceeding from the
above the support uniformly so as to casing pipe to the main
1. Wrap the jagged plastic and close it with seal the sleeve. pipe, heat with the
support and secure a preheated piece. flame by performing
it with adhesive tape, the heat-shrinking.
making it adhere
correctly to the pipes. © RACI srl - ISO 9001 - Catalog ed 10/2016
