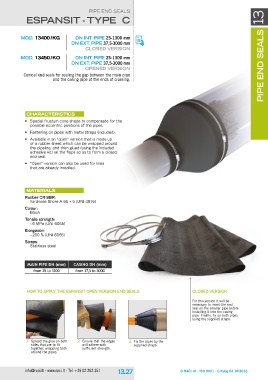

PIPe eND seals pipe end seals 13

espansit - type c

MOd. 13400 / Kg dn int. pipe 25-1300 mm
dn eXt. pipe 37,5-3000 mm

clOsed versiOn

MOd. 13450 / KO dn int. pipe 25-1300 mm
dn eXt. pipe 37,5-3000 mm

Opened versiOn

Conical end seals for sealing the gap between the main pipe
and the casing pipe at the ends of crossing.

cHaracteristics

• special frustum cone shape to compensate for the
possible eccentric positions of the pipes.

• Fastening on pipes with metal straps (included).

• available in an “open” version that is made up
of a rubber sheet which can be wrapped around
the pipeline, and then glued (using the included
adhesive kit) on the flaps so as to form a closed
end seal.

• “Open” version can also be used for lines
that are already installed.

Materials

rubber cr-sBr:
hardness shore a 65 ± 5 (UNI 4916)

colour:
Black

tensile strength:
~ 6 MPa (UNI 6065)

elongation:
~ 200 % (UNI 6065)

straps:
stainless steel

MAIN PIPE DN (mm) CASING DN (mm)
from 25 to 1300 from 37,5 to 3000

HOW tO apply tHe espansit Open versiOn end seals clOsed versiOn
For this version it will be
necessary to insert the end
seal on the smaller pipe before
installing it into the casing
pipe. Finally, fix on both pipes
using the supplied straps.

1. Spread the glue on both 2. Ensure that the edges 3. Fix the pipes by the
sides that are to fit will adhere with supplied straps.
together, wrapping both sufficient strength.
around the pipes.
