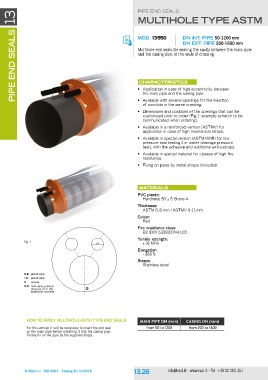

pipe end seals 13 PIPe eND seals

MultiHOle type astM

MOd. 13 550 dn int. pipe 50-1200 mm
dn eXt. pipe 200-1600 mm

Multihole end seals for sealing the cavity between the main pipe
and the casing pipe at the ends of crossing.

Fig. 1 cHaracteristics

O.d. jacket pipe • application in case of high eccentricity between
i.d. jacket pipe the main pipe and the casing pipe.
H spacer
O.d. main pipe: position • available with several openings for the insertion
of conduits in the same crossing.
and size Ø of the
additional conduits • Dimensions and positions of the openings that can be
customized prior to order (Fig.1: example schetch to be
communicated when ordering).

• available in a reinforced version (astMv) for
application in case of high mechanical stress.

• available in special version (astM-KMR) for low-
pressure seal testing (i.e. water drainage pressure
test), with the adhesive and additional extra-straps.

• available in special material for classes of high fire
resistance.

• Fixing on pipes by metal straps (included).

Materials

pvc plastic:
Hardness 50 ± 5 shore a

thickness:
astM 6 -8 mm / astMv 9-11mm

colour:
Red

fire resistance class:
B2 (DIN 53382/DN4102)

tensile strength:
≥18 MPa

elongation:
~ 360 %

straps:
stainless steel

G

HOW tO apply MultiHOle astM type end seals MAIN PIPE DN (mm) CASING DN (mm)
For this version it will be necessary to insert the end seal from 50 to 1200 from 200 to 1600
on the main pipe before installing it into the casing pipe.
Finally fix on the pipe by the supplied straps.
