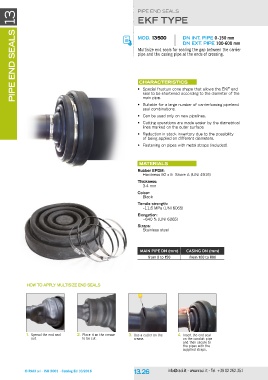

P. 144
pipe end seals 13 PIPe eND seals
eKf type
MOd. 13 500 dn int. pipe 0-150 mm
dn eXt. pipe 100-600 mm
Multisize end seals for sealing the gap between the carrier
pipe and the casing pipe at the ends of crossing.
cHaracteristics
• special frustum cone shape that allows the eKF end
seal to be shortened according to the diameter of the
main pipe.
• suitable for a large number of carrier/casing pipe/end
seal combinations.
• Can be used only on new pipelines.
• Cutting operations are made easier by the diametrical
lines marked on the outer surface.
• Reduction in stock inventory due to the possibility
of being applied on different diameters.
• Fastening on pipes with metal straps (included).
Materials
rubber epdM:
Hardness 50 ± 5 shore a (UNI 4916)
thickness:
3-4 mm
colour:
Black
tensile strength:
~11,6 MPa (UNI 6065)
elongation:
~ 640 % (UNI 6065)
straps:
stainless steel
MAIN PIPE DN (mm) CASING DN (mm)
from 0 to 150 from 100 to 800
HOW tO apply Multisize end seals
1. Spread the end seal 2. Place it on the crease 3. Use a cutter on the 4. Insert the end seal
out. to be cut. crease. on the conduit pipe
and then secure to
the pipes with the
supplied straps.
