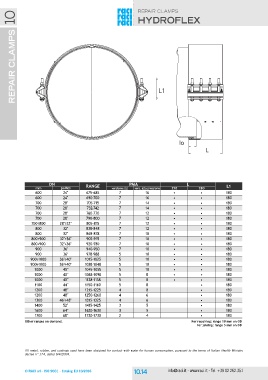

REPAIR CLAMPS 10 repair clamps

hydroflex

L1

lo
L

DN pollici Range PMA L L1

mm 24" 675-685 versione std. vers. alta pressione 210 280 180
24" 690-700 180
600 28" 705-715 7 16 •• 180
600 28" 732-742 7 16 •• 180
700 28" 760-770 7 14 •• 180
700 28" 790-800 7 14 •• 180
700 28"÷32" 805-815 7 12 •• 180
700 32" 838-848 7 12 •• 180
700÷800 32" 868-878 7 12 •• 180
800 32"÷36" 905-915 7 12 •• 180
800 32"÷36" 920-930 7 10 •• 180
800÷900 36" 940-950 7 10 •• 180
800÷900 36" 978-988 7 10 •• 180
900 36"÷40" 1015-1025 7 10 •• 180
900 36"÷40" 1038-1048 5 10 •• 180
900÷1000 40" 1045-1055 5 10 •• 180
900÷1000 40" 1088-1098 5 10 •• 180
1000 40" 1128-1138 5 10 •• 180
1000 44" 1150-1160 58 •• 180
1000 48" 1215-1225 58 •• 180
1100 48" 1250-1260 58 180
1200 46"÷48" 1315-1325 48 • 180
1200 52" 1415-1425 46 • 180
1300 64" 1620-1630 46 • 180
1400 68" 1720-1730 35 • 180
1600 35 •
1700 24 •
•

Other ranges on demand. For repairing: range 10 mm on OD
For joining: range 5 mm on OD

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
