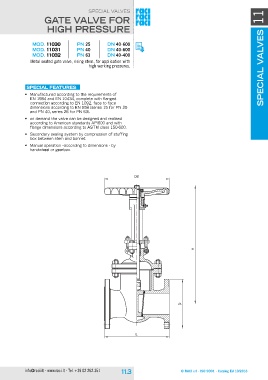

SPECIAL VALVES SPECIAL VALVES 11
GATE VALVE FOR
HIGH PRESSURE
MOD. 11030 PN 25 DN 40-600
MOD. 11031 PN 40 DN 40-600
MOD. 11032 PN 63 DN 40-400
Metal seated gate valve, rising stem, for application with
high working pressures.
special features
• Manufactured according to the requirements of
EN 1984 and EN 10434, complete with flanged
connection according to EN 1092, face to face
dimensions according to EN 558 (series 15 for PN 25
and PN 40, series 26 for PN 63).
• on demand the valve can be designed and realised
according to American standards API600 and with
flange dimensions according to ASTM class 150-600.
• Secondary sealing system by compression of stuffing
box between stem and bonnet.
• Manual operation –according to dimensions - by
handwheel or gearbox.
D0
D
H
L
