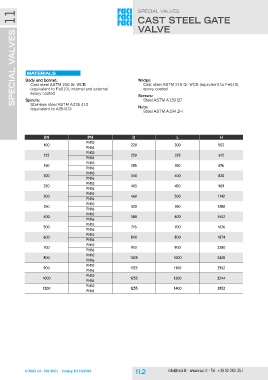

SPECIAL VALVES 11 SPECIAL VALVES

CAST STEEL GATE
VALVE

Materials Wedge:
Cast steel ASTM 216 Gr. WCB (equivalent to Fe510),
Body and bonnet: epoxy coated
Cast steel ASTM 216 Gr. WCB
(equivalent to Fe510), internal and external Screws:
epoxy coated Steel ASTM A139 B7

Spindle: Nuts:
Stainless steel ASTM A276 410 Steel ASTM A194 2H
(equivalent to AISI410)

DN PN D L H
100 PN10 220 300 502
125 PN16 250 325 612
150 PN10 285 350 676
200 PN16 340 400 820
250 PN10 405 450 969
300 PN16 460 500 1142
350 PN10 520 550 1280
400 PN16 580 600 1452
500 PN10 715 700 1676
600 PN16 840 800 1874
700 PN10 910 900 2280
800 PN16 1025 1000 2420
900 PN10 1125 1100 2952
1000 PN16 1255 1200 3244
1200 PN10 1255 1400 3852
PN16
PN10
PN16
PN10
PN16
PN10
PN16
PN10
PN16
PN10
PN16
PN10
PN16
PN10
PN16
