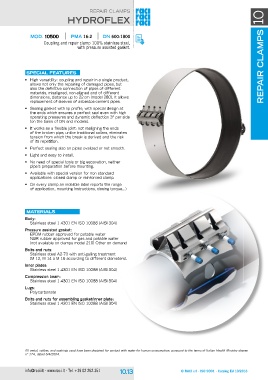

RePaIR ClaMPs repair claMps 10
HydrOfleX
MOd. 10500 pMa 16-2 dn 600-1800
Coupling and repair clamp 100% stainless steel,
with pressure assisted gasket.
special features
• High versatility: coupling and repair in a single product,
allows not only the repairing of damaged pipes, but
also the definitive connection of pipes of different
materials, misaligned, non-aligned and of different
dimensions, distance up to 22 cm (model 280). It allows
replacement of sleeves of asbestos-cement pipes.
• sealing gasket with lip profile, with special design at
the ends which ensures a perfect seal even with high
operating pressures and dynamic deflection 3° per side
(on the basis of DN and models).
• It works as a flexible joint: not realigning the ends
of the broken pipe, unlike traditional collars, eliminates
tension from which the break is derived and the risk
of its repetition.
• Perfect sealing also on pipes ovalized or not smooth.
• light and easy to install.
• No need of special tools or big escavation, neither
pipe’s preparation before mounting.
• available with special version for non standard
applications: closed clamp or reinforced clamp.
• On every clamp an indelible label reports the range
of application, mounting instructions, closing torque…)
Materials
Body:
stainless steel 1.4301 eN IsO 10088 (aIsI 304)
pressure assisted gasket:
ePDM rubber approved for potable water
NBR rubber approved for gas and potable water
(not available on clamps model 210) Other on demand
Bolts and nuts:
stainless steel a2-70 with anti-galling treatment
(M 12, M 14 o M 16 according to different diameters).
inner plates:
stainless steel 1.4301 eN IsO 10088 (aIsI 304)
compression beam:
stainless steel 1.4301 eN IsO 10088 (aIsI 304)
lugs:
Polycarbonate
Bolts and nuts for assembling gasket/inner plate:
stainless steel 1.4301 eN IsO 10088 (aIsI 304)
All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree
n° 174, dated 6/4/2004.
