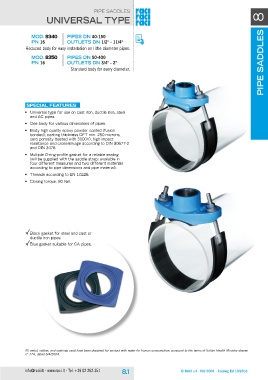

PIPe saDDles pipe saddles 8
universal type
MOd. 8340 pipes dn 40-150
pn 16 Outlets dn 1/2“ - 11/4“
Reduced body for easy installation on little diameter pipes.
MOd. 8350 pipes dn 50-400
pn 16 Outlets dn 3/4“ - 2“
Standard body for every diameter.
special features
• Universal type for use on cast iron, ductile iron, steel
and aC pipes.
• One body for various dimensions of pipes.
• Body high quality epoxy powder coated (fusion
bonded), coating thickness DFt min. 250 microns,
zero porosity (tested with 3000v), high impact
resistance and cross-linkage according to DIN 30677-2
and DIN 3476.
• Multiple O-ring-profile gasket for a reliable sealing
(will be supplied with the saddle strap: available in
four different measures and two different materials
according to pipe dimensions and pipe material).
• threads according to eN 10226.
• Closing torque: 80 Nm.
Black gasket for steel and cast or
ductile iron pipes.
Blue gasket suitable for Ca pipes.
All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree
n° 174, dated 6/4/2004.
