NON RETURN VALVES 7 NON RETURN VALVES

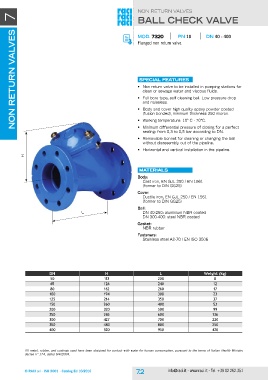

BALL CHECK VALVE

MOD. 7320 PN 10 DN 40 - 400

Flanged non return valve.

H special features

• Non return valve to be installed in pumping stations for
clean or sewage water and viscous fluids.

• Full bore type, self cleaning ball. Low pressure drop
and noiseless.

• Body and cover high quality epoxy powder coated
(fusion bonded), minimum thickness 250 micron.

• Working temperature: 10° C - 70°C.

• Minimum differential pressure of closing for a perfect
sealing: from 0,3 to 0,5 bar according to DN.

• Removable bonnet for cleaning or changing the ball
without disassembly out of the pipeline.

• Horizontal and vertical installation in the pipeline.

Materials

Body:
Cast iron, EN GJL 250 / EN 1561
(former to DIN GG25)

Cover:
Ductile iron, EN GJL 250 / EN 1561
(former to DIN GG25)

Ball:
L DN 40-250: aluminium NBR coated

DN 300-400: steel NBR coated

Gasket:
NBR rubber

Fasteners:
Stainless steel A2-70 / EN ISO 3506

DN H L Weight (kg)

50 113 200 8

65 126 240 12

80 162 260 17

100 194 300 23

125 214 350 37

150 260 400 53

200 320 500 99

250 265 600 136

300 427 700 220

350 480 800 250

400 520 950 420

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
