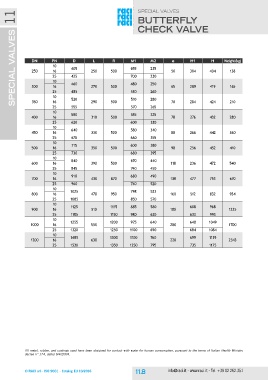

Page 114 - RACI

SPECIAL VALVES 11 SPECIAL VALVES

BUTTERFLY
CHECK VALVE

DN PN D L R M1 M2 e H1 H Weight(kg)

250 10 405 250 500 655 235 50 304 404 138
16

25 425 700 230

300 10 460 270 500 480 250 65 289 419 165
16

25 485 530 260

350 10 520 290 500 510 280 70 284 424 210
16

25 555 570 265

400 10 580 310 500 535 325 78 276 432 280
16

25 620 600 330

450 10 640 330 500 580 340 88 266 442 360
16

25 670 660 355

500 10 715 350 500 600 380 98 256 452 410
16

25 730 680 395

600 10 840 390 500 670 440 118 236 472 540
16

25 845 740 450

700 10 910 430 870 680 490 138 477 753 670
16

25 960 740 520

800 10 1025 470 950 798 533 160 512 832 934
16

25 1085 850 570

900 10 1125 510 1115 885 580 180 608 968 1225
16

25 1185 1150 980 630 633 993

1000 10 1255 550 1200 975 640 200 648 1049 1700
16

25 1320 1250 1100 690 684 1084

1200 10 1485 630 1300 1100 760 220 699 1139 2343
16

25 1530 1350 1250 795 735 1175

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
