HYDRANTS 6 L HYDRANTS
L1

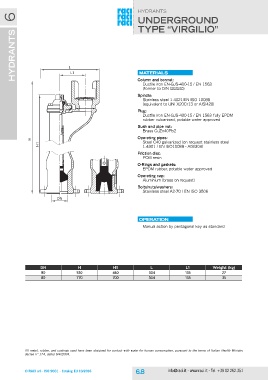

H UNDERGROUND
H1 DN type “VIRGILIO”

Materials
Column and bonnet:

Ductile iron EN-GJS-400-15 / EN 1563
(former to DIN GGG40)
Spindle:
Stainless steel 1.4021/EN ISO 10088
(equivalent to UNI X20Cr13 or AISI420)
Plug:
Ductile iron EN-GJS-400-15 / EN 1563 fully EPDM
rubber vulcanised, potable water approved
Bush and pipe nut:
Brass CuZn40Pb2
Operating pipes:
Steel C40 galvanized (on request stainless steel
1.4301 / EN ISO10088 - AISI304)
Friction disc:
POM resin
O-Rings and gaskets:
EPDM rubber, potable water approved
Operating cap:
Aluminium (brass on request)
Bolts/nuts/washers:
Stainless steel A2-70 / EN ISO 3506

operation
Manual action by pentagonal key as standard

DN H H1 L L1 Weight (kg)
80 530 460 304 135 27
80 770 700 304 135 35

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
