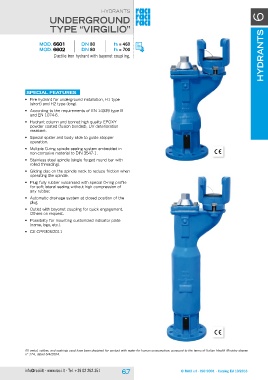

Page 65 - RACI

HYDRaNts Hydrants 6

undergrOund
type “virgiliO”

MOd. 6601 dn 80 h = 460
MOd. 6602 dn 80 h = 700

Ductile iron hydrant with bayonet coupling.

special features

• Fire hydrant for underground installation, H1 type
(short) and H2 type (long).

• according to the requirements of eN 14339 type B
and eN 1074-6.

• Hydrant column and bonnet high quality ePOXY
powder coated (fusion bonded), Uv deterioration
resistant.

• special spider and body slide to guide stopper
operation.

• Multiple O-ring spindle sealing system embedded in
non-corrosive material to DIN 3547-1.

• stainless steel spindle (single forged round bar with
rolled threading).

• gliding disc on the spindle neck to reduce friction when
operating the spindle.

• Plug fully rubber vulcanised with special O-ring profile
for soft lateral sealing without high compression of
any rubber.

• automatic drainage system at closed position of the
plug.

• Outlet with bayonet coupling for quick engagement.
Others on request.

• Possibility for mounting customized indicator plate
(name, logo, etc.).

• Ce CPR305/2011

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree
n° 174, dated 6/4/2004.
