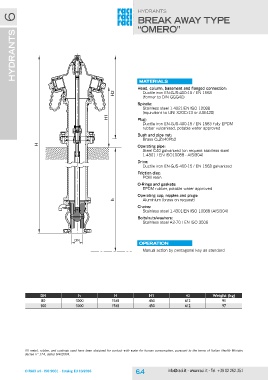

Hydrants 6 HYDRaNts
BreaK aWay type
“OMerO”
MaterialsH1
H2
Head, column, basement and flanged connection:
H Ductile iron eN-gJs-400-15 / eN 1563
(former to DIN ggg40)
h
spindle:
stainless steel 1.4021/eN IsO 10088
(equivalent to UNI X20Cr13 or aIsI420)
plug:
Ductile iron eN-gJs-400-15 / eN 1563 fully ePDM
rubber vulcanised, potable water approved
Bush and pipe nut:
Brass CuZn40Pb2
Operating pipe:
steel C40 galvanized (on request stainless steel
1.4301 / eN IsO10088 - aIsI304)
drive:
Ductile iron eN-gJs-400-15 / eN 1563 galvanized
friction disc:
POM resin
O-rings and gaskets:
ePDM rubber, potable water approved
Operating cap, nipples and plugs:
aluminium (brass on request)
chains:
stainless steel 1.4301/eN IsO 10088 (aIsI304)
Bolts/nuts/washers:
stainless steel a2-70 / eN IsO 3506
DN
OperatiOn
Manual action by pentagonal key as standard
DN h H H1 H2 Weight (kg)
612 91
80 1000 1541 450 612 97
100 1000 1541 450
All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
