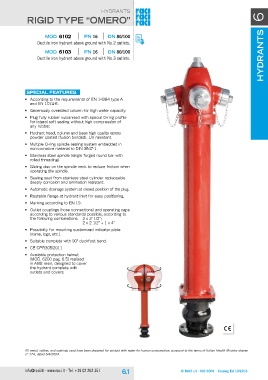

HYDRaNts Hydrants 6

rigid type “OMERO”

MOd. 6102 pn 16 dn 80/100

Ductile iron hydrant above ground with No.2 outlets.

MOd. 6103 pn 16 dn 80/100

Ductile iron hydrant above ground with No.3 outlets.

special features

• according to the requirements of eN 14384 type a
and eN 1074-6.

• generously oversized column for high water capacity.

• Plug fully rubber vulcanised with special O-ring profile
for lateral soft sealing without high compression of
any rubber.

• Hydrant head, column and base high quality epoxy
powder coated (fusion bonded), Uv resistant.

• Multiple O-ring spindle sealing system embedded in
non-corrosive material to DIN 3547-1.

• stainless steel spindle (single forged round bar with
rolled threading).

• gliding disc on the spindle neck to reduce friction when
operating the spindle.

• sealing seat from stainless steel cylinder replaceable
deeply corrosion and lamination resistant.

• automatic drainage system at closed position of the plug.

• Routable flange at hydrant inlet for easy positioning.

• Marking according to eN 19.

• Outlet couplings (hose connections) and operating caps
according to various standards possible, according to
the following combinations 2 x 2’ 1/2”;
2 x 2 1/2” + 1 x 4”

• Possibility for mounting customized indicator plate
(name, logo, etc.).

• suitable complete with 90° duckfoot bend.

• Ce CPR305/2011

• available protection helmet
(MOD. 6200 pag. 6.5) realized
in aBs resin, designed to cover
the hydrant complete with
outlets and covers.

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree
n° 174, dated 6/4/2004.
