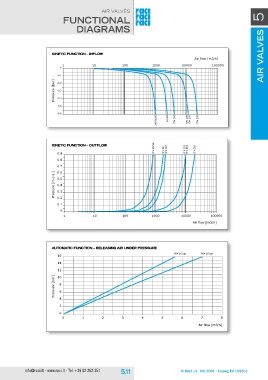

aIR valves air valves 5
functiOnal
diagraMs
Kinetic functiOn – inflOW
Air flow [m3/h]
1 10 100 1000 10000 100000
Pressure [bar] 0
-0.1
-0.2
-0.3
-0.4
-0.5
-0.6
DN 50/65
DN 80
DN 100
DN 150
DN 200
DN 250
Kinetic functiOn – OutflOW DN 50/65
DN 80
0.9 DN 100
0.8 DN 150
0.7 DN 200
0.6 DN 250
0.5
Pressure [m.c.a.] 0.4
0.3
0.2 10 100 1000 10000 100000
0.1
0
1
Air flow [m3/h]
Pressure [bar]autOMatic functiOn – releasing air under pressure PFA 16 bar PFA 25 bar
16 6 78
14 Air flow [m3/h]
12
10
8
6
4
2
0
012345
