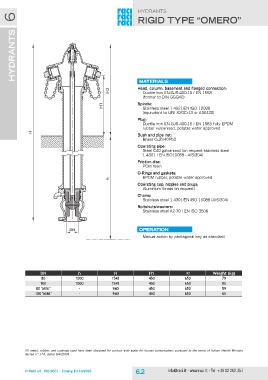

Page 60 - RACI

HYDRANTS 6 HYDRANTS

rigid type “OMERO”

MaterialsH1
H2
Head, column, basement and flanged connection:
H Ductile iron EN-GJS-400-15 / EN 1563
(former to DIN GGG40)
h
Spindle:
Stainless steel 1.4021/EN ISO 10088
(equivalent to UNI X20Cr13 or AISI420)

Plug:
Ductile iron EN-GJS-400-15 / EN 1563 fully EPDM
rubber vulcanised, potable water approved

Bush and pipe nut:
Brass CuZn40Pb2

Operating pipe:
Steel C40 galvanized (on request stainless steel
1.4301 / EN ISO10088 - AISI304)

Friction disc:
POM resin

O-Rings and gaskets:
EPDM rubber, potable water approved

Operating cap, nipples and plugs:
Aluminium (brass on request)

Chains:
Stainless steel 1.4301/EN ISO 10088 (AISI304)

Bolts/nuts/washers:
Stainless steel A2-70 / EN ISO 3506

DN operation

Manual action by pentagonal key as standard

DN h H H1 H2 Weight (kg)
650 79
80 1000 1541 450
650 85
100 1000 1541 450 650 59
650 65
80 "mini" - 940 450

100 "mini" - 940 450

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
