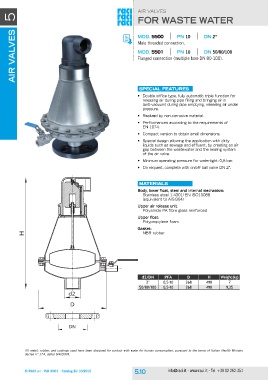

Page 56 - RACI

P. 56

AIR VALVES 5 AIR VALVES

FOR WASTE WATER

MOD. 5500 PN 10 DN 2“

Male threaded connection.

MOD. 5501 PN 10 DN 50/80/100

Flanged connection (multiple bore DN 80-100).

H SPECIAL FEATURES

• Double orifice type, fully automatic triple function for
releasing air during pipe filling and bringing air in
(anti-vacuum) during pipe emptying, releasing air under
pressure.

• Realized by non-corrosive material.

• Performances according to the requirements of
EN 1074.

• Compact version to obtain small dimensions.

• Special design allowing the application with dirty
liquids such as sewage and effluent, by creating an air
gap between the wastewater and the sealing system
of the air valve.

• Minimum operating pressure for watertight: 0,5 bar.

• On request, complete with on/off ball valve DN 2”.

Materials

Body, lower float, stem and internal mechanism:
Stainless steel 1.4301/ EN ISO10088
(equivalent to AISI304)

Upper air release unit:
Polyamide PA fibre glass reinforced

Upper float:
Polypropylene foam

Gasket:
NBR rubber

d2/DN PFA D H Weight(kg)

2" 0,5-10 268 490 7

50/80/100 0,5-10 268 490 9,25

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
