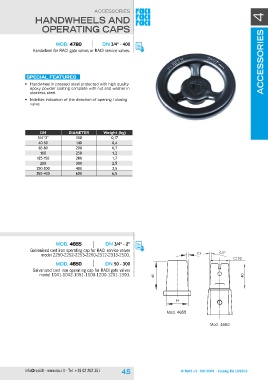

ACCESSORIES accessoriES 4
HANDWHEELS AND
OPERATING CAPS
MOD. 4780 DN 3/4“ - 400
Handwheel for RACI gate valves or RACI service valves.
SPECIAL FEATURES
• Handwheel in pressed steel protected with high quality
epoxy powder coating complete with nut and washer in
stainless steel.
• Indelible indication of the direction of opening / closing
valve.
DN DIAMETER Weight (kg)
3/4"-2" 100 0,17
40-50 140 0,4
65-80 200 0,7
250 1,2
100 280 1,7
125-150 300 2,5
400 3,5
200 600 6,5
250-300
350-400
MOD. 4655 DN 3/4“ - 2”
Galvanised cast iron operating cap for RACI service valves 2.5 2,5°
model 2250-2252-2253-2260-2312-2313-2500. 32
MOD. 4650 DN 50 - 300
Galvanized cast iron operating cap for RACI gate valves 40
model 1041-1042-1051-1100-1200-1201-1300. 40
14
Mod. 4655
Mod. 4650
