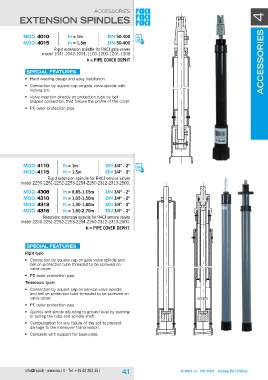

ACCESSORIES accessoriES 4
EXTENSION SPINDLES
MOD. 4010 h = 1m DN 50-400
MOD. 4015 h = 1,5m DN 50-400
Rigid extension spindle for RACI gate valves
model 1041-1042-1051-1100-1200-1201-1300
h = pipe cover depht
SPECIAL FEATURES
• Hard wearing design and easy installation.
• Connection by square cap on gate valve spindle with
locking pin.
• Valve insertion directly on protection tube by bell
shaped connection, that follows the profile of the cover.
• PE outer protection pipe.
MOD. 4110 h = 1m DN 3/4“ - 2“
MOD. 4115 h = 1,5m DN 3/4“ - 2“
Rigid extension spindle for RACI service valves
model 2250-2251-2252-2253-2254-2260-2312-2313-2500.
MOD. 4308 h = 0,85-1,15m DN 3/4“ - 2“
MOD. 4310 h = 1,05-1,50m DN 3/4“ - 2“
MOD. 4313 h = 1,30-1,80m DN 3/4“ - 2“
MOD. 4316 h = 1,60-2,70m DN 3/4“ - 2“
Telescopic extension spindle for RACI service valves
model 2250-2251-2252-2253-2254-2260-2312-2313-2500.
h = pipe cover depht.
SPECIAL FEATURES
Rigid type:
• Connection by square cap on gate valve spindle and
bell on protection tube threaded to be screwed on
valve cover.
• PE outer protection pipe.
Telescopic type:
• Connection by square cap on service valve spindle
and bell on protection tube threaded to be screwed on
valve cover.
• PE outer protection pipe.
• Quickly and simple adjusting to ground level by pushing
or pulling the tube and spindle shaft.
• Compensation for any failure of the soil to prevent
damage to the maneuver transmission.
• Complete with support for base plate.
