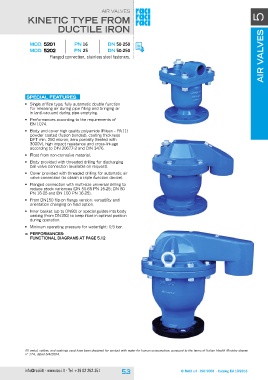

AIR VALVES AIR VALVES 5

KINETIC TYPE FROM
DUCTILE IRON

MOD. 5201 PN 16 DN 50-250

MOD. 5202 PN 25 DN 50-250

Flanged connection, stainless steel fasteners.

SPECIAL FEATURES

• Single orifice type, fully automatic double function
for releasing air during pipe filling and bringing air
in (anti-vacuum) during pipe emptying.

• Performances according to the requirements of
EN 1074.

• Body and cover high quality polyamide (Rilsan – PA11)
powder coated (fusion bonded), coating thickness
DFT min. 250 micron, zero porosity (tested with
3000V), high impact resistance and cross-linkage
according to DIN 30677-2 and DIN 3476.

• Float from non-corrosive material.

• Body provided with threaded drilling for discharging
ball valve connection (available on request).

• Cover provided with threaded drilling for automatic air
valve connection (to obtain a triple function device).

• Flanged connection with multi-size universal drilling to
reduce stock variances (DN 50-65 PN 16-25; DN 80
PN 16-25 and DN 100 PN 16-25).

• From DN150 flip-on flange version: versatility and
orientation changing on field option.

• Inner basket (up to DN80) or special guides into body
casting (from DN150) to keep float in optimal position
during operation.

• Minimum operating pressure for watertight: 0,5 bar.

>> performances:
FUNCTIONAL DIAGRAMs AT page 5.12

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree
n° 174, dated 6/4/2004.
