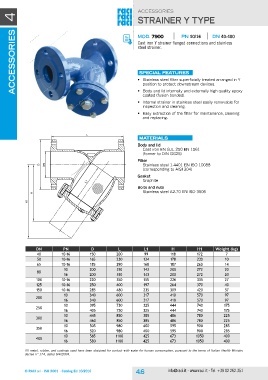

accessOries 4 aCCessORIes

strainer y type

MOd. 7900 pn 10/16 dn 40-400

Cast iron Y strainer flanged connections and stainless
steel strainer.

H1 special features
H
D • stainless steel filter superficially treated arranged in Y
DN position to protect downstream devices.
L1
• Body and lid internally and externally high quality epoxy
coated (fusion bonded).

• Internal strainer in stainless steel easily removable for
inspection and cleaning.

• easy extraction of the filter for maintenance, cleaning
and replacing.

L

Materials

Body and lid
Cast iron eN gJl 250 eN 1561
(former to DIN gg25)

filter
stainless steel 1.4401 eN IsO 10088
(corresponding to aIsI 304)

gasket
graphite

Bolts and nuts
stainless steel a2-70 eN IsO 3506

DN PN D L L1 H H1 Weight (kg)

40 10-16 150 200 99 118 172 7

50 10-16 165 230 134 178 233 10

65 10-16 185 290 168 187 260 14

80 10 200 310 143 200 272 20
16 200 310 143 200 272 20

100 10-16 220 350 155 226 335 27

125 10-16 250 400 197 264 370 40

150 10-16 285 480 235 309 420 57

200 10 340 600 317 410 570 97
16 340 600 317 410 570 97

250 10 395 730 325 444 740 175
16 405 730 325 444 740 175

300 10 445 850 385 486 780 225
16 460 850 385 486 780 225

350 10 505 980 400 595 900 285
16 520 980 400 595 900 285

400 10 565 1100 425 673 1050 400
16 580 1100 425 673 1050 400

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
