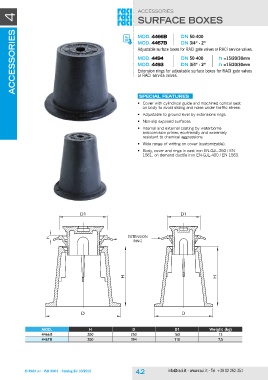

Page 42 - RACI

accessoriES 4 ACCESSORIES

SURFACE BOXES

MOD. 4466B DN 50-400

MOD. 4467B DN 3/4“ - 2“

Adjustable surface boxes for RACI gate valves or RACI service valves.

MOD. 4494 DN 50-400 h =15/20/30mm

MOD. 4493 DN 3/4“ - 2“ h =15/20/30mm

Extension rings for adjustable surface boxes for RACI gate valves
or RACI service valves.

SPECIAL FEATURES

• Cover with cylindrical guide and machined conical seat
on body to avoid sliding and noise under traffic stress.

• Adjustable to ground level by extensions rings.

• Non-slip exposed surfaces.

• Internal and external coating by waterborne
anticorrosion primer, ecofriendly and extremely
resistant to chemical aggressions.

• Wide range of writing on cover (customizable).

• Body, cover and rings in cast iron EN-GJL-250 / EN
1561, on demand ductile iron EN-GJL-400 / EN 1563.

D1 D1

EXTENSION
RING
h

H
H

D D

MOD. H D D1 Weight (kg)
4466 B 200
4467 B 200 250 160 13

194 110 7,5

© RACI srl - ISO 9001 - Catalog Ed 10/2016 4.2 info@raci.it - www.raci.it - Tel. +39 02 262.351
