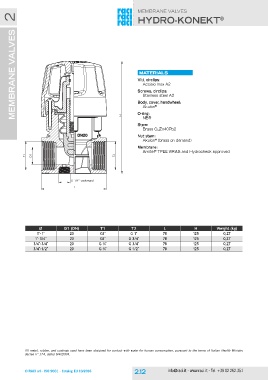

membrane VALVES 2 membrane VALVES
hydro-konekt®
T2 materials
H
Viti, circlips:
Acciaio Inox A2
Screws, circlips:
Stanless steel A2
Body, cover, handwheel:
Akulon®
O-ring:
NBR
Stem:
Brass CuZn40Pb2
Nut stem:
Akulon® (brass on demand)
Membrane:
Arnitel® TPEE WRAS and Hydrocheck approved
T1
D1
G 1/4“ oanrdicehmieasntda
L
Ø D1 (DN) T1 T2 L H Weight (kg)
1"- 1" 20 G1" G 1" 78 125 0,27
1"- 3/4" 20 G1" G 3/4" 78 125 0,27
3/4"-3/4" 20 G ¾" G 3/4" 78 125 0,27
3/4"-1/2" 20 G ¾" G 1/2" 78 125 0,27
All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
