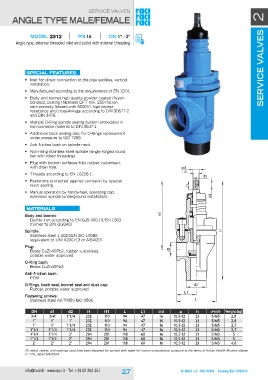

SERVICE VALVES                                                                                              SERVICE VALVES 2

ANGLE TYPE MALE/FEMALE

	MODEL 2312	         PN 16	                       DN 1“ - 2“

Angle type, external threaded inlet and outlet with internal threading

 special features                                                               ød
                                                                                  a
• 	Inlet for direct connection to the pipe saddles, vertical                                    d5
   installation.
                                                                            H1                     d4
•	 Manufactured according to the requirements of EN 1074.                                       h         H

•	 Body and bonnet high quality powder coated (fusion
   bonded), coating thickness DFT min. 250 micron,
   zero porosity (tested with 3000V), high impact
   resistance and cross-linkage according to DIN 30677-2
   and DIN 3476.

•	 Multiple O-Ring spindle sealing system embedded in
   non-corrosive material to DIN 3547-1.

•	Additional back sealing disc for O-Rings replacement
   under pressure to ISO 7259.

•	Anti friction bush on spindle neck.

•	 Non-rising stainless steel spindle (single forged round
   bar with rolled threading).

•	 Plug with bottom surfaces fully rubber vulcanised,
   with drain hole.

•	Threads according to EN 10226-1.

•	 Fasteners protected against corrosion by special
   resin sealing.

•	 Manual operation by handwheel, operating cap,
   extension spindle (underground installation).

 Materials                                                                  d1

Body and bonnet:                                                                       d2
   Ductile iron according to EN-GJS-400-15 / EN 1563                            L1
   (former to DIN GGG40)
                                                                                        L
Spindle:
   Stainless steel 1.4021/EN ISO 10088
   (equivalent to UNI X20Cr13 or AISI420)

Plug:
   Brass CuZn40Pb2, rubber vulcanised,
   potable water approved

O-Ring bush:
   Brass CuZn40Pb2

Anti-friction bush:
   POM

O-Rings, back seal, bonnet seal and dust cap:
   Rubber, potable water approved

Fastening screws:
   Stainless steel A2-70/EN ISO 3506

DN d1 d2 H H1 L L1 Ø d a h d4/d5 Weight(kg)
3/4" 3/4" 1"1/4 232                               110  94               47  16 10,5-12 21           5/M5     2,8
1"     1"     1" 232 110 94                                             47  16 10,5-12 21           5/M5     2,8
1"     1"     1"1/4  232                          110  94               47  16 10,5-12 21           5/M5     2,7
1"1/4  1"1/4  1"1/4  232                          110  94               47  16 10,5-12 21           5/M5     2,7
1"1/4  1"1/4  2"     294 201 118                                        60  16 10,5-12 21           5/M5     5
1"1/2  1"1/2  2"     294 201 118                                        60  16 10,5-12 21           5/M5     5
2"     2"     2"     294 201 118                                        60  16 10,5-12 21           5/M5     4,8

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree
n° 174, dated 6/4/2004.
