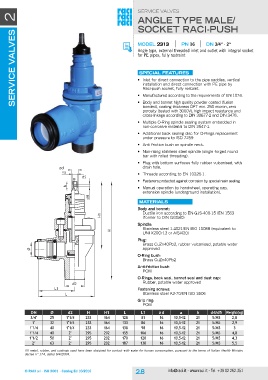

Page 24 - RACI

SERVICE VALVES 2 SERVICE VALVES

ANGLE TYPE MALE/
SOCKET RACI-PUSH

MODEL 2313 PN 16 DN 3/4“ - 2“

Angle type, external threaded inlet and outlet with integral socket
for PE pipes, fully restraint

ød special features
a
d5 • Inlet for direct connection to the pipe saddles, vertical
installation and direct connection with PE pipe by
Ø Raci-push socket, fully restaint.
h
• Manufactured according to the requirements of EN 1074.
d4
H1 • Body and bonnet high quality powder coated (fusion
H bonded), coating thickness DFT min. 250 micron, zero
porosity (tested with 3000V), high impact resistance and
cross-linkage according to DIN 30677-2 and DIN 3476.

• Multiple O-Ring spindle sealing system embedded in
non-corrosive material to DIN 3547-1.

• Additional back sealing disc for O-Rings replacement
under pressure to ISO 7259.

• Anti friction bush on spindle neck.

• Non-rising stainless steel spindle (single forged round
bar with rolled threading).

• Plug with bottom surfaces fully rubber vulcanised, with
drain hole.

• Threads according to EN 10226-1.

• Fasteners protected against corrosion by special resin sealing.

• Manual operation by handwheel, operating cap,
extension spindle (underground installation).

Materials

Body and bonnet:
Ductile iron according to EN-GJS-400-15 /EN 1563
(former to DIN GGG40)

Spindle:
Stainless steel 1.4021/EN ISO 10088 (equivalent to
UNI X20Cr13 or AISI420)

Plug:
Brass CuZn40Pb2, rubber vulcanised, potable water
approved

O-Ring bush:
Brass CuZn40Pb2

Anti-friction bush:
POM

d2 O-Rings, back seal, bonnet seal and dust cap:
L1 Rubber, potable water approved

L Fastening screws:
Stainless steel A2-70/EN ISO 3506

Grip ring:
POM

DN Ø d2 H H1 L L1 Ø d a h d4/d5 Weight(kg)
3/4" 25 1"1/4 233 164 128 81 16 10,5-12 21 5/M5 2,8

1" 32 1"1/4 233 164 133 86 16 10,5-12 21 5/M5 2,9

1"1/4 40 1"1/4 233 164 138 98 16 10,5-12 21 5/M5 3

1"1/4 40 2" 295 202 155 106 16 10,5-12 21 5/M5 4,8

1"1/2 50 2" 295 202 170 120 16 10,5-12 21 5/M5 4,3

2" 63 2" 295 202 187 138 16 10,5-12 21 5/M5 5,5

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
