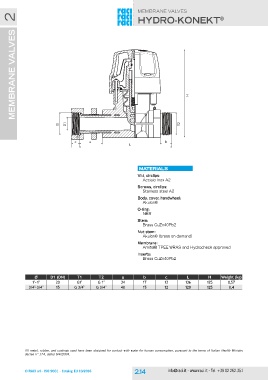

membrane VALVES
hydro-konekt®
membrane VALVES 2
T1
D1
T2
H
ca Lb
Materials
Viti, circlips:
Acciaio Inox A2
Screws, circlips:
Stanless steel A2
Body, cover, handwheel:
Akulon®
O-ring:
NBR
Stem:
Brass CuZn40Pb2
Nut stem:
Akulon® (brass on demand)
Membrane:
Arnitel® TPEE WRAS and Hydrocheck approved
Inserts:
Brass CuZn40Pb2
Ø D1 (DN) T1 T2 a b c L H Weight (kg)
1"- 1" 20 G1" G 1" 34 17 12 136 125 0,57
3/4"-3/4" 15 G 3/4" G 3/4" 40 15 12 120 125 0,4
All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
