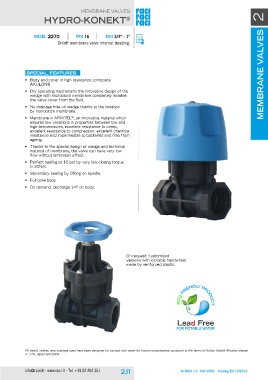

MeMBRaNe valves MeMBrane valves 2
HydrO-KOneKt®
MOd. 2270 pn 16 dn 3/4“ - 1“
On/off membrane valve internal treading.
special features
• Body and cover in high resistance composite
aKUlON®
• Dry operating mechanism: the innovative design of the
wedge with monoblock membrane completely isolates
the valve cover from the fluid.
• No drainage hole on wedge thanks to the isolation
by monoblock membrane.
• Membrane in aRNItel®, an innovative material which
assures low variations in properties between low and
high temperatures, excellent resistance to creep,
excellent resistance to compression, excellent chemical
resistance and impermeable to bacteries and free from
ageing.
• thanks to the special design of wedge and technical
material of membrane, the valve can have very low
flow without lamination effect.
• Perfect sealing at 16 bar by very low closing torque
(< 20Nm).
• secondary sealing by ORing on spindle.
• Full bore body.
• On demand, decharge 1/4” on body.
On request: customized Oduct
versions with lockable handwheel
made by reinforced plastic.
riendly pr
ecO f
lead free
fOr pOtaBle Water
All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree
n° 174, dated 6/4/2004.
