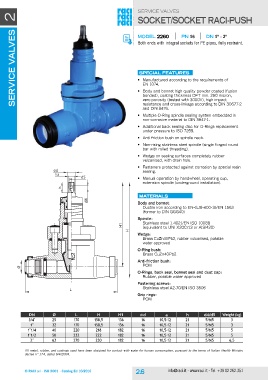

SOCKET/SOCKET RACI-PUSH

MODEL 2260 PN 16 DN 1“ - 2“

Both ends with integral sockets for PE pipes, fully restraint.

Ø ød special features
h a d5
L • Manufactured according to the requirements of
d4 EN 1074.
H1
H • Body and bonnet high quality powder coated (fusion
bonded), coating thickness DFT min. 250 micron,
zero porosity (tested with 3000V), high impact
resistance and cross-linkage according to DIN 30677-2
and DIN 3476.

• Multiple O-Ring spindle sealing system embedded in
non-corrosive material to DIN 3547-1.

• Additional back sealing disc for O-Rings replacement
under pressure to ISO 7259.

• Anti friction bush on spindle neck.

• Non-rising stainless steel spindle (single forged round
bar with rolled threading).

• Wedge on sealing surfaces completely rubber
vulcanised, with drain hole.

• Fasteners protected against corrosion by special resin
sealing.

• Manual operation by handwheel, operating cup,
extension spindle (underground installation).

Materials

Body and bonnet:
Ductile iron according to EN-GJS-400-15/EN 1563
(former to DIN GGG40)

Spindle:
Stainless steel 1.4021/EN ISO 10088
(equivalent to UNI X20Cr13 or AISI420)

Wedge:
Brass CuZn40Pb2, rubber vulcanised, potable
water approved

O-Ring bush:
Brass CuZn40Pb2

Anti-friction bush:
POM

O-Rings, back seal, bonnet seal and dust cap:
Rubber, potable water approved

Fastening screws:
Stainless steel A2-70/EN ISO 3506

Grip rings:
POM

DN Ø L H H1 Ød a h d4/d5 Weight (kg)
3/4" 25 170 158,5 136
1" 32 170 158,5 136 16 10,5-12 21 5/M5 3
1"1/4 40 220 218 182
1"1/2 50 232 222 182 16 10,5-12 21 5/M5 3
2" 63 270 230 182
16 10,5-12 21 5/M5 5

16 10,5-12 21 5/M5 5

16 10,5-12 21 5/M5 6,5

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
