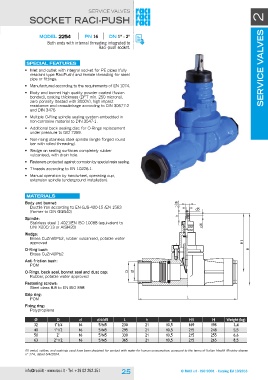

SERVICE VALVES SERVICE VALVES 2

SOCKET RACI-PUSH

MODEL 2254 PN 16 DN 1“ - 2“

Both ends with internal threading integrated to
Raci-push socket.

special features

• Inlet and outlet with integral socket for PE pipes (fully
restraint type RaciPush) and female threading for steel
pipe or fittings.

• Manufactured according to the requirements of EN 1074.

• Body and bonnet high quality powder coated (fusion
bonded), coating thickness (DFT min. 250 microns),
zero porosity (tested with 3000V), high impact
resistance and cross-linkage according to DIN 30677-2
and DIN 3476

• Multiple O-Ring spindle sealing system embedded in
non-corrosive material to DIN 3547-1.

• Additional back sealing disc for O-Rings replacement
under pressure to ISO 7259.

• Non-rising stainless steel spindle (single forged round
bar with rolled threading).

• Wedge on sealing surfaces completely rubber
vulcanised, with drain hole.

• Fasteners protected against corrosion by special resin sealing.

• Threads according to EN 10226-1.

• Manual operation by handwheel, operating cup,
extension spindle (underground installation).

materials D ød
Ø a d5
Body and bonnet: L
Ductile iron according to EN-GJS-400-15 /EN 1563 h
(former to DIN GGG40) d4
H1
Spindle: H
Stainless steel 1.4021/EN ISO 10088 (equivalent to
UNI X20Cr13 or AISI420)

Wedge:
Brass CuZn40Pb2, rubber vulcanised, potable water
approved

O-Ring bush:
Brass CuZn40Pb2

Anti-friction bush:
POM

O-Rings, back seal, bonnet seal and dust cap:
Rubber, potable water approved

Fastening screws:
Steel class 8.8 to EN ISO 898

Grip ring:
POM

Fixing ring:
Polypropilene

Ø D d d4/d5 L h a H1 H Weight (kg)
32 1"1/4 16 5/M5 230 21 10,5 169 198 3,4

40 1"1/2 16 5/M5 295 21 10,5 215 248 5,5

50 2" 16 5/M5 330 21 10,5 215 255 6,6

63 2"1/2 16 5/M5 365 21 10,5 215 265 8,5

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree
n° 174, dated 6/4/2004.
