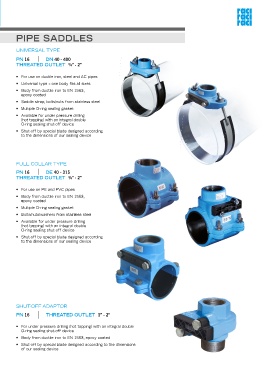

PiPe sADDles

uNIVERSal tyPE

PN 16 DN 40 - 400
THreATeD oUTleT ¾” - 2”

• For use on ductile iron, steel and aC pipes

• Universal type = one body fits all sizes

• Body from ductile iron to EN 1563,
epoxy coated

• Saddle strap, bolts/nuts from stainless steel

• Multiple o-ring sealing gasket

• Available for under pressure drilling
(hot tapping) with an integral double
o-ring sealing shut-off device

• Shut-off by special blade designed according
to the dimensions of our sealing device

Full CollaR tyPE

PN 16 De 40 - 315
THreATeD oUTleT ¾” - 2”

• For use on PE and PVC pipes

• Body from ductile iron to EN 1563,
epoxy coated

• Multiple o-ring sealing gasket

• Bolts/nuts/washers from stainless steel

• Available for under pressure drilling
(hot tapping) with an integral double
o-ring sealing shut-off device

• Shut-off by special blade designed according
to the dimensions of our sealing device

SHut-oFF aDaPtoR

PN 16 THreATeD oUTleT 1” - 2”

• For under pressure drilling (hot tapping) with an integral double
o-ring sealing shut-off device

• Body from ductile iron to EN 1563, epoxy coated

• Shut-off by special blade designed according to the dimensions
of our sealing device
